SOLUTION

Mechatronics

ESCATEC has demonstrable experience supporting complex mechatronics project requirements. We feel that the full breadth of our electro-mechanical assembly services combined with electronics and electrical capabilities, sets us apart in the marketplace.

Precision Electro-Mechanical Assembly

We produce and ship many complex electro-mechanical assemblies each week, often including a similar number of individual parts to a PCB assembly. With such a high level of moving parts, we often refer to these types of assemblies as ‘machines’ rather than ‘products’ or ‘units’.

The awareness of critical engineering tolerances and the use of mechanical tools and gauges is key when producing moving mechanical assemblies of this complexity. Our skills and knowledge base also extends to testing mechanical and pneumatic assemblies.

Following rigorous approval processes, our supply chain partners for custom parts - such as plastics, machined and fabricated metalwork, etc. - are closely monitored for quality and delivery performance. Tight control of the material supply chain ensures that, as with electronic parts, the availability of high-quality mechanical parts is maintained for timely production.

Lean Manufacturing

Interactive electronic documentation, multi-language work instructions and robust variant management controls are just some of the lean principles driving our quality-controlled production lines.

We have considerable experience of establishing lean lines to produce complex mechatronic assemblies. These assemblies can be resourced by between two and ten operators depending on live customer demand. We operate 24-hour replenishment through line-side KanBan-based pull systems which are supported by bar-code tracking to provide real-time operational information.

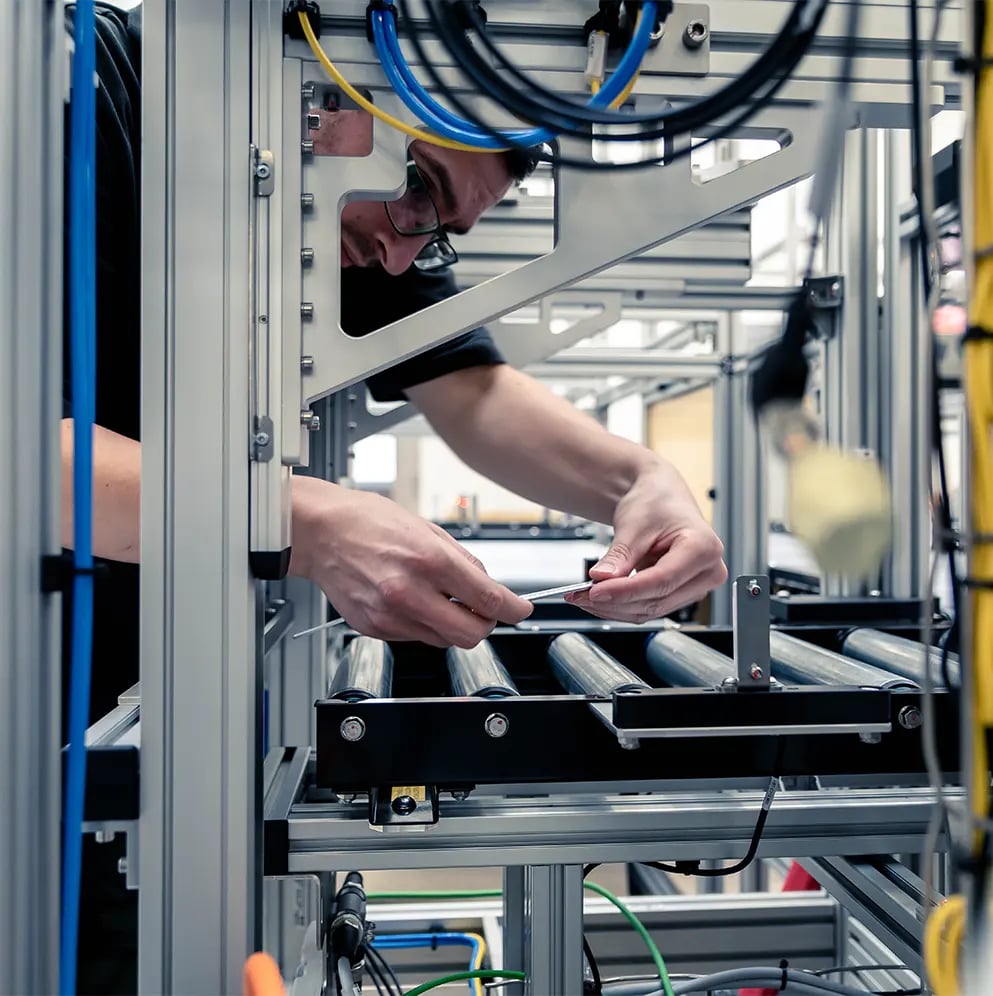

escatec-mechatronics

Electrical Assembly

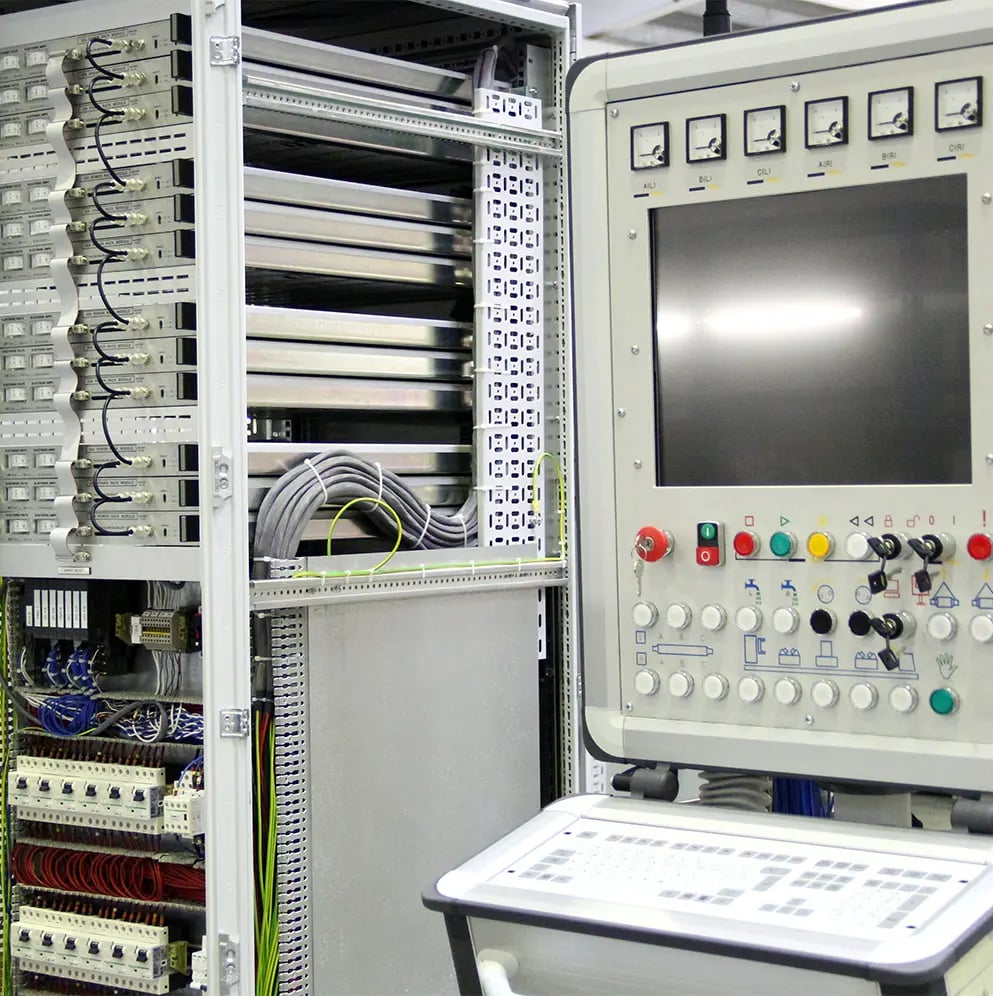

Many of the mechatronic assemblies produced by ESCATEC require some form of wire or cable interconnections between boards and sub-assemblies. These can be via cable looms and harnesses or point-to-point wiring. We are often called on to produce machines that require critical cable routing, so that the moving parts may function safely. In addition, we also undertake electrical wiring of switch and instrument panels, as well as 19" rack systems and sophisticated control cabinets.

When required, skilled, time-served wiremen use customers' technical drawings, internally created build packs and test specifications to develop fully integrated rackmount solutions. A high level of accuracy means we capture every detail of the control cabinet configuration and hardware, meaning our services are ideal for OEMs looking for multiple identical electrical installations. Any metalwork modifications to the control cabinets themselves can be carried out in-house and our testing capabilities comprise of continuity, high voltage flash and PAT testing.

escatec-control-cabinet

Software Control

Software upload, verification, and execution is carried out within the scope of ESCATEC’s robust revision control system. We understand the importance of traceability and can provide historical records of both hardware and software revisions for specific products that we build when requested.

escatec-mechatronics-2

Bringing it all Together

We are competent in delivering small and medium sized ‘benchtop’ products through to ‘large format’ electro-mechanical machines. Coupled with our postponement manufacturing, configure-to-order (CTO) and outbound logistics (direct-ship fulfilment) capabilities, ESCATEC offers a wide range of mechatronics solutions and supply chain experience including:

Blue-Arrow

Product design

Blue-Arrow

Reverse engineering

Blue-Arrow

DfX

Blue-Arrow

Industrialisation

Blue-Arrow

Fabricated parts

Blue-Arrow

Machined parts

Blue-Arrow

Plastic parts

Blue-Arrow

Pneumatics

Blue-Arrow

Machine vision

Blue-Arrow

Sensor technology

Blue-Arrow

Robotics and automation

Blue-Arrow

PCBA integration

Blue-Arrow

Wiring looms and harnesses

Blue-Arrow

Energy chains and cable routing

Blue-Arrow

Control cabinet assembly

Blue-Arrow

Heat management and ventilation

Blue-Arrow

High voltage installation and test

Blue-Arrow

Display units

Blue-Arrow

Software load and test

Blue-Arrow

Custom system integration

Blue-Arrow

Postponement manufacturing

Blue-Arrow

Configure-to-order manufacturing

Blue-Arrow

Direct ship fulfilment
